Simscape Electrical (formerly SimPowerSystems and SimElectronics) provides component libraries for modeling and simulating electronic, mechatronic, and electrical power systems. It includes models of semiconductors, motors, and components for applications such as electromechanical actuation, smart grids, and renewable energy systems. You can use these components to evaluate analog circuit architectures, develop mechatronic systems with electric drives, and analyze the generation, conversion, transmission, and consumption of electrical power at the grid level.

Simscape Electrical helps you develop control systems and test system-level performance. You can parameterize your models using MATLAB variables and expressions, and design control systems for electrical systems in Simulink. You can integrate mechanical, hydraulic, thermal, and other physical systems into your model using components from the Simscape family of products. To deploy models to other simulation environments, including hardware-in-the-loop (HIL) systems, Simscape Electrical supports C-code generation.

Simscape Electrical was developed in collaboration with Hydro-Québec of Montreal.
What Is Simscape Electrical?

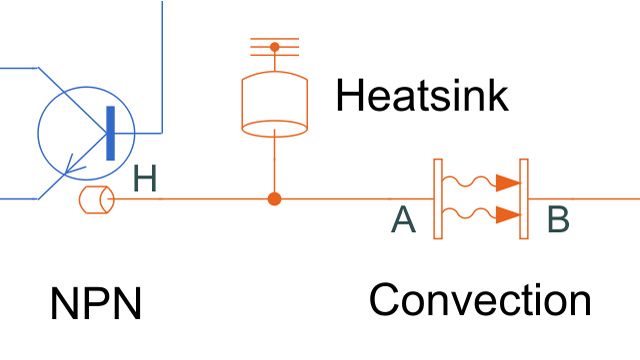

Semiconductor device with thermally dependent behavior.

Semiconductor Devices

Examine switching-level characteristics, losses, system-level behavior, and thermal effects. Convert SPICE subcircuit netlists for discretes to Simscape components.

Real-Time Simulation and Testing of Power Electronics on a More Electric Aircraft

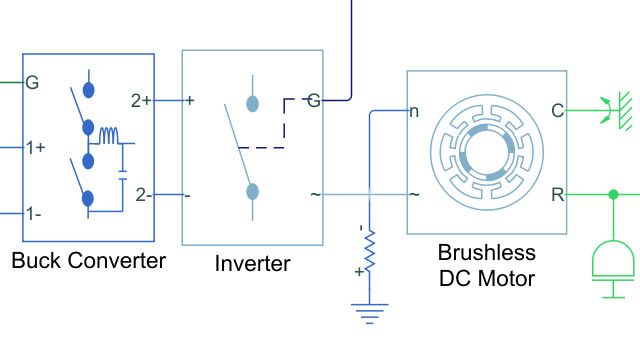

BLDC speed control.

Motors and Drivers

Design controllers and verify the impact of nonlinearities and heat on the design. Import parameters from a database or finite element analysis to match real component behavior.

Ather Energy Develops Electric Two-Wheeled Scooter and Charging Stations Using Model-Based Design

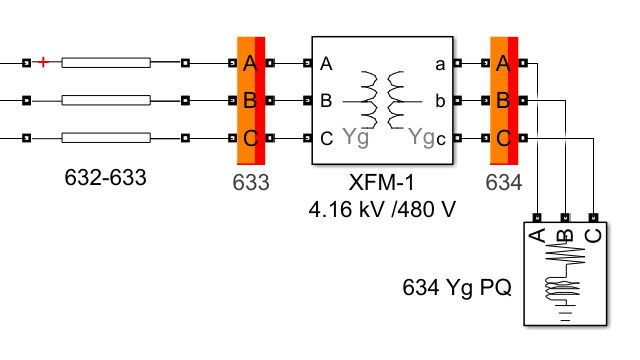

Transmission Line and Transformer in Power Network.

Power Networks

Analyze grid-level behavior in networks with renewables, power electronics, and drives. Use load flow analyses to determine steady-state conditions and FFTs to analyze power quality.

Sandia National Laboratories Simulates Hawaii Microgrid and Photovoltaic Systems

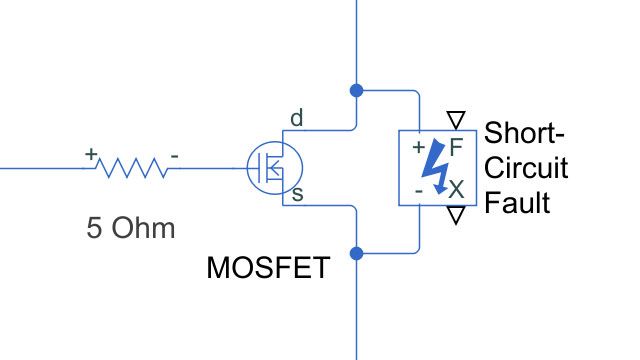

Short circuit MOSFET fault.

Fault Tolerance

Minimize losses, equipment downtime, and costs by validating design under fault conditions.  Verify circuit components are operating within their safe operating area.

Lockheed Martin Simulates Orion Spacecraft Missions Using a Multidomain Power System Model

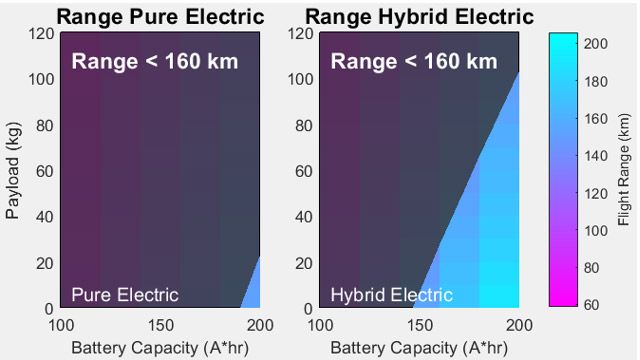

Comparison for range and payload for hybrid powertrain and electric powertrain.

Virtual Testing

Verify system behavior under conditions that cannot be easily tested with hardware prototypes. Run sets of tests in parallel on a multicore workstation or a cluster.

Hydro-Québec Models Wind Power Plant Performance

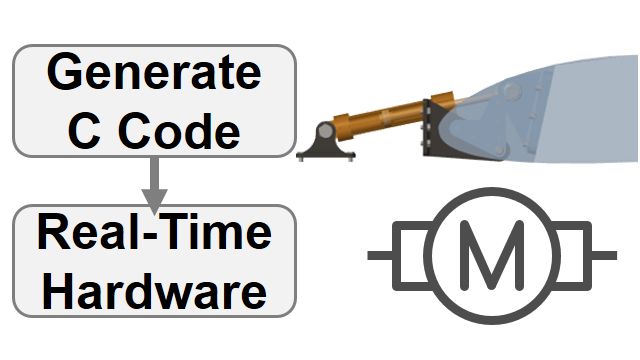

Simulating in Real Time: Electrical Actuator

Model Deployment

Convert your Simscape model to C code to test control algorithms. Run HIL tests on dSPACE®, Speedgoat, OPAL-RT, and other real-time systems before performing physical tests.

Volvo Construction Equipment Streamlines Product Development with a Real-Time, Human-in-the-Loop Simulator

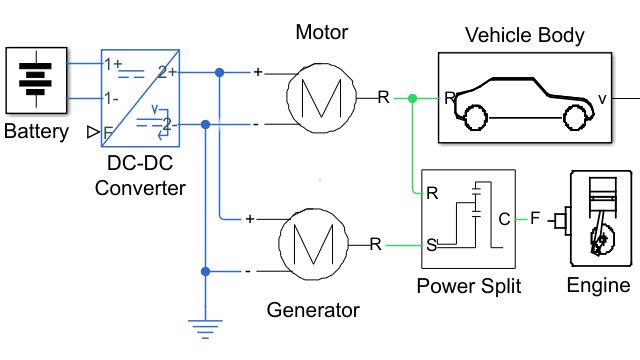

Model of a vehicle with a power-split hybrid transmission.

Simscape Platform

Test integration of electrical, thermal, mechanical, hydraulic, and pneumatic systems in a single environment. Identify integration issues and optimize system-level performance.

Vintecc Develops PLC System for Multi-Axle Harvesting Machine Using Model-Based Design

MATLAB and Simulink

Use MATLAB to automate tasks such as model assembly, testing, and post-processing. Use Simulink to integrate control algorithms and hardware design in a single environment.

Toyota Front-Loads Development of Engine Control Systems Using Comprehensive Engine Models and SIL+M

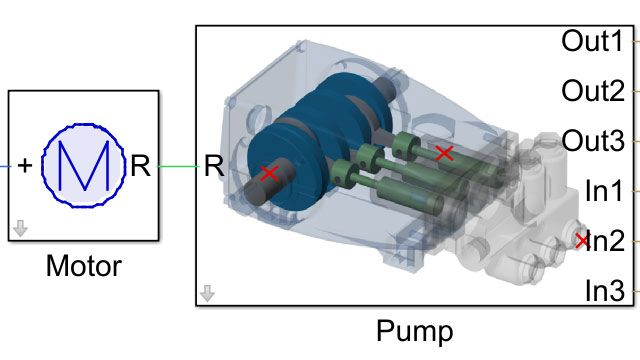

Digital twin of a pump used to detect faults in an actual system.

From Research To Production

Simscape models help you refine requirements, design control systems, test embedded controllers, and support in-service operation as a digital twin.

ABB Accelerates Application Control Software Development for a Power Electronic Controller
