HDL Coder

Generate Verilog, SystemVerilog, and VHDL code for FPGA and ASIC designs

HDL Coder enables high-level design for FPGAs, SoCs, and ASICs by generating portable, synthesizable Verilog^®, SystemVerilog, and VHDL^® code from MATLAB functions, Simulink models, and Stateflow charts. You can use the generated HDL code for FPGA programming, ASIC prototyping, and production design.

HDL Coder includes a workflow advisor that automates prototyping generated code on AMD^®, Intel^®, and Microchip boards and generates IP cores for ASIC and FPGA workflows. You can optimize for speed and area, highlight critical paths, and generate resource utilization estimates before synthesis. HDL Coder provides traceability between Simulink models and generated Verilog, SystemVerilog, and VHDL code, enabling code verification for high-integrity applications adhering to DO-254 and other standards.

What Is HDL Coder?

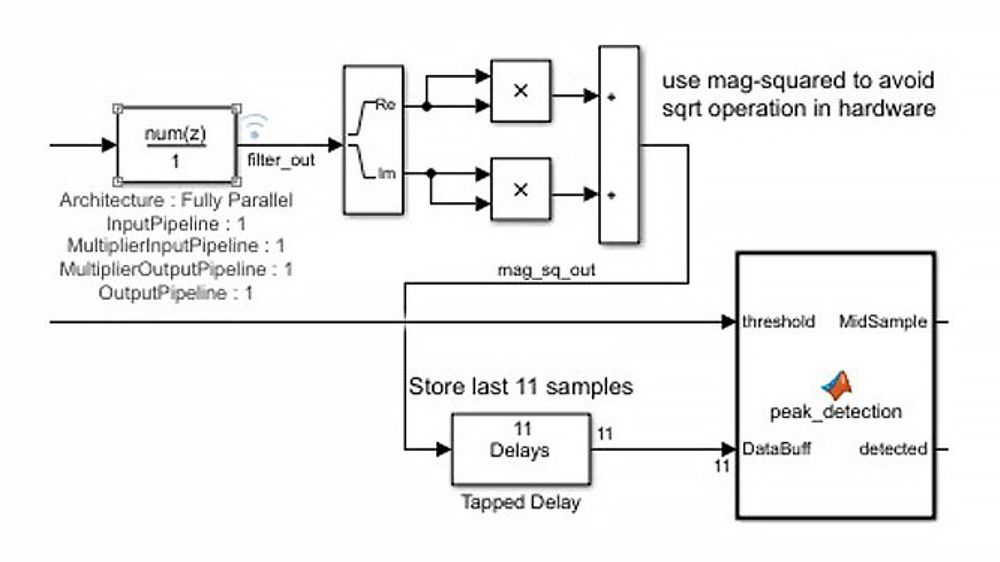

Hardware architecture diagram for a pulse detection algorithm.

High-Level Hardware Design

Design your subsystem by choosing from more than 300 HDL-ready Simulink blocks and MATLAB functions; add Stateflow charts, Simscape models, and deep learning networks. Simulate the hardware behavior of your design, explore alternative architectures, and generate synthesizable Verilog, SystemVerilog, or VHDL using fixed-point or floating-point data types or a combination of both.

Documentation | Examples

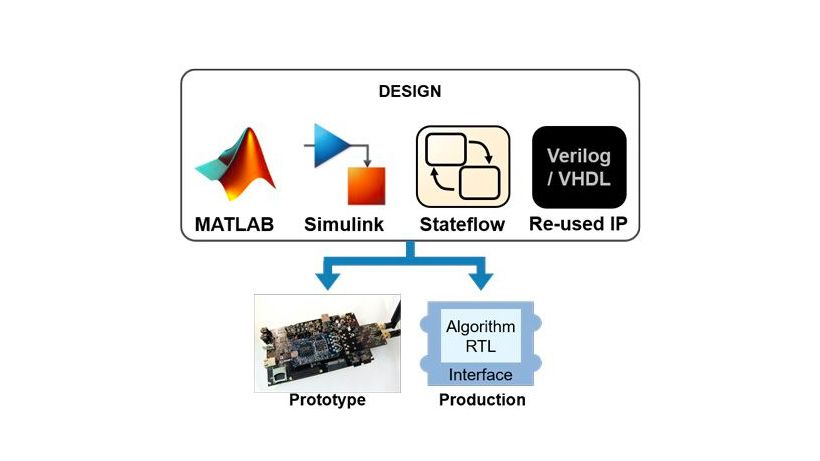

Diagram illustrating synthesizable HDL to FPGA and ASIC workflows.

Vendor-Independent Targeting

Generate synthesizable RTL that is target-optimized for FPGAs from leading vendors, and use it with ASICs as well. Reuse the same models for prototype and production code generation.

Documentation | Examples

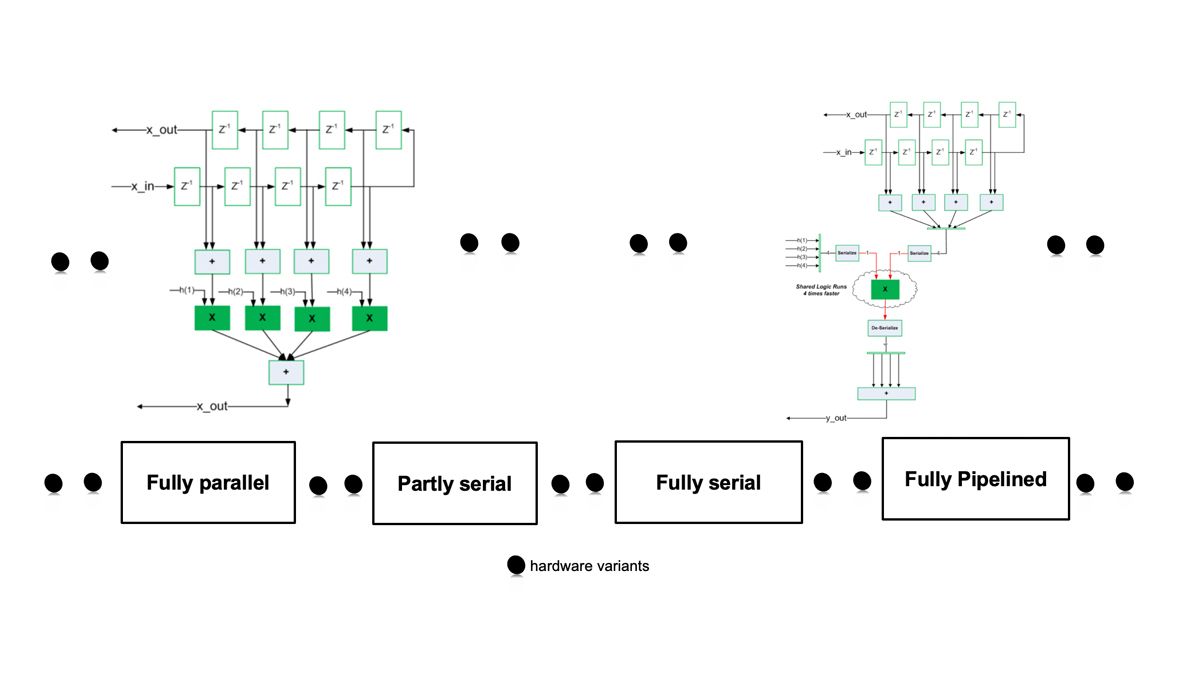

Plot of speed versus area for a variety of implementation options. Fully-parallel and fully-pipelined architectures for a FIR filter.

Design Optimization

Explore a wide variety of hardware architecture and fixed-point quantization options before committing to an RTL implementation. Use high-level synthesis optimizations such as resource sharing, pipelining, and delay balancing, that efficiently map to device resources such as logic, DSPs, and RAMs.

Documentation | Examples

Development boards with Xilinx, Microchip, and Intel FPGAs.

FPGA-Based Devices

Generate RTL that maps efficiently to AMD, Intel, and Microchip FPGA and SoC devices. Map inputs and outputs to device-level I/O and AXI registers using hardware support packages for popular boards, or define your own custom reference design.

Documentation | Examples

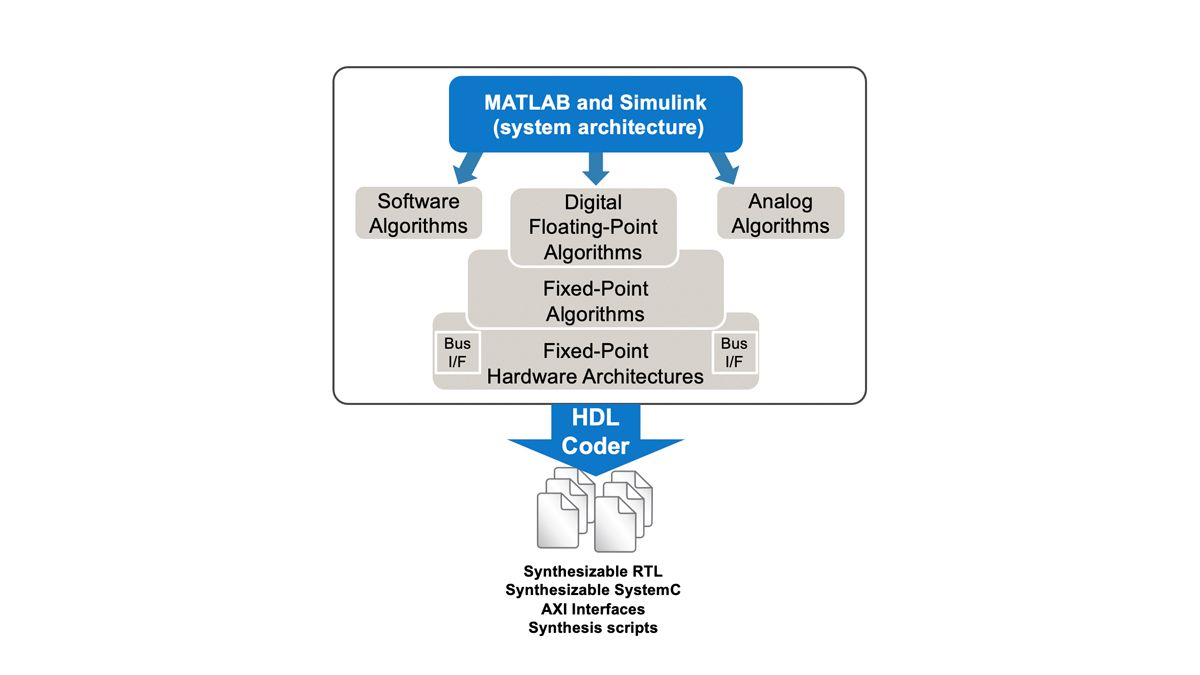

Process steps in targeting MATLAB and Simulink algorithms to ASICs.

ASIC Workflows

Design and verify your architecture and high-level hardware functionality in the context of your mixed analog, digital, and software system. Generate RTL with high quality-of-results (QoR), or generate synthesizable SystemC for use with Cadence^® Stratus HLS.

MATLAB-to-SystemC Workflow for Cadence Stratus HLS (5:02)

Documentation | Examples

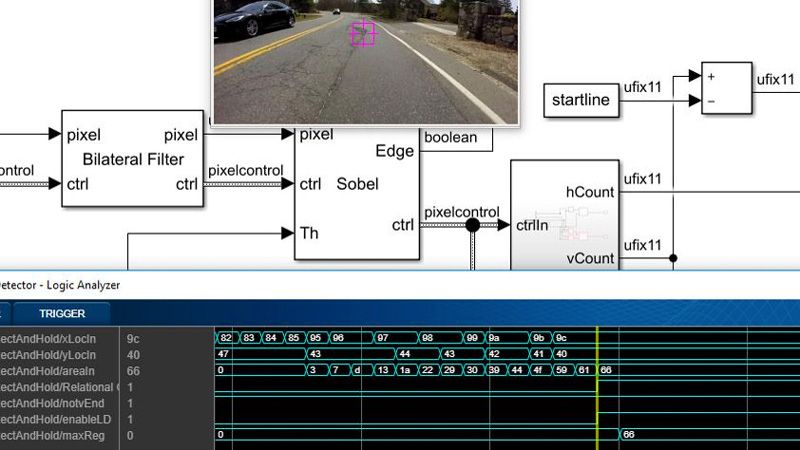

A still image from a dashboard camera with a Simulink model for video processing and a logic analyzer.

Application Development

Design communications algorithms with subsystems and blocks from Wireless HDL Toolbox, or develop streaming implementations of vision processing algorithms using Vision HDL Toolbox. Implement complex low-latency motor control systems.

Examples (Communications, Vision, Motor Control)

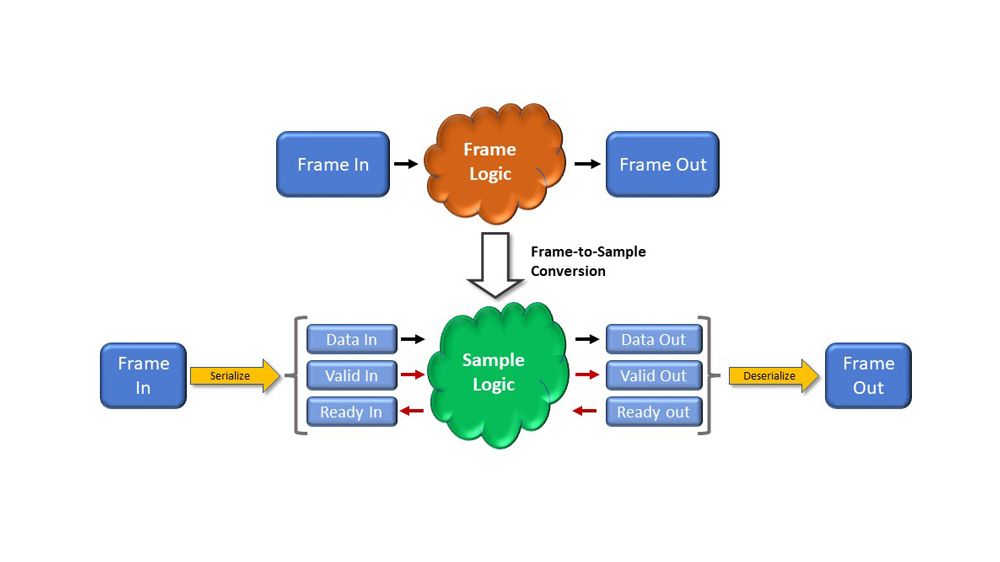

A high-level workflow diagram for automated frame-to-sample conversion.

Design for Hardware

Develop algorithms that work efficiently on streaming data. Add hardware architecture details with HDL-ready Simulink blocks, custom MATLAB Function blocks, and Stateflow charts.

Documentation | Tutorial

Speedgoat FPGA I/O boards superimposed over a Simulink model showing an FPGA block.

Real-Time Simulation and Testing

Target Speedgoat programmable FPGA I/O modules using the HDL Workflow Advisor, and simulate using Simulink Real-Time, or use additional FPGA I/O modules from dSPACE and NI. Generate native floating-point HDL code to simplify workflows for high-accuracy prototyping.

Generate Floating-Point HDL for FPGA and ASIC Hardware (9:19)

Documentation | Examples

Early Verification

Use with HDL Verifier to ensure your generated RTL will function as required in its system context. Verify generated HDL with MATLAB and Simulink testbenches using cosimulation with leading HDL simulators. Use FPGA-in-the-loop testing to verify your design’s implementation on FPGA development boards.

Documentation | Examples

Product Resources:

Documentation Examples Videos Technical articles Functions Blocks Requirements Release notes

Philips Healthcare Develops Smart Digital RF Power Subsystem for MRI Systems

“Simulink helps system architects and hardware designers communicate. It is like a shared language that enables us to exchange knowledge, ideas, and designs. Simulink and HDL Coder enable us to focus on developing our algorithms and refining our design via simulation, not on checking VHDL syntax and coding rules.”
Marcel van Bakel, Philips Healthcare
